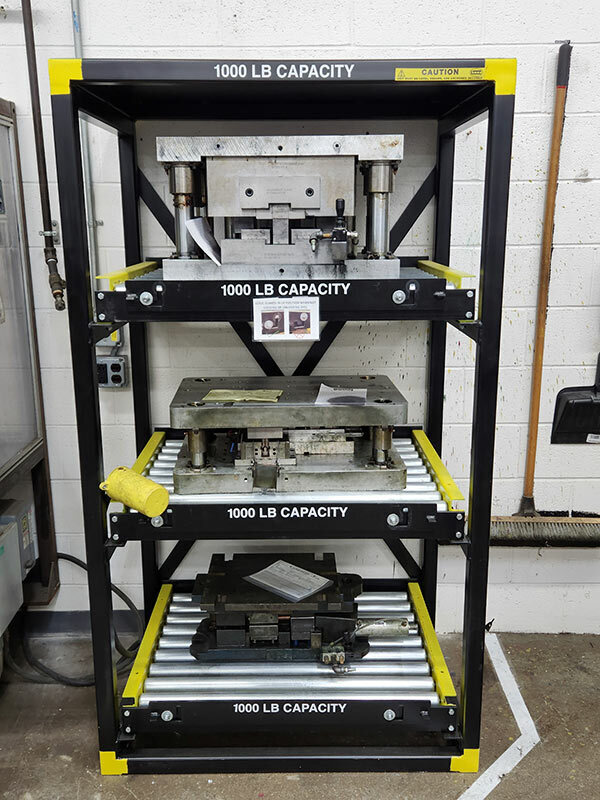

Proper Storage Systems manufactures heavy-duty mold storage racks, including welded constructed racks that have conveyor rollers bolted into sections to create storage locations for dies and any type of parts and tooling. Common applications for our fixture heavy-duty die shelving are storing dies and molds. Our customers have transfer carts they use to move their dies and molds around, and simply move that cart to the front of the rack, adjusting for desired height, and rolling the die or mold onto the cart. Shelf capacities for our jig storage racks range from 50 to 2000 lbs per shelf.

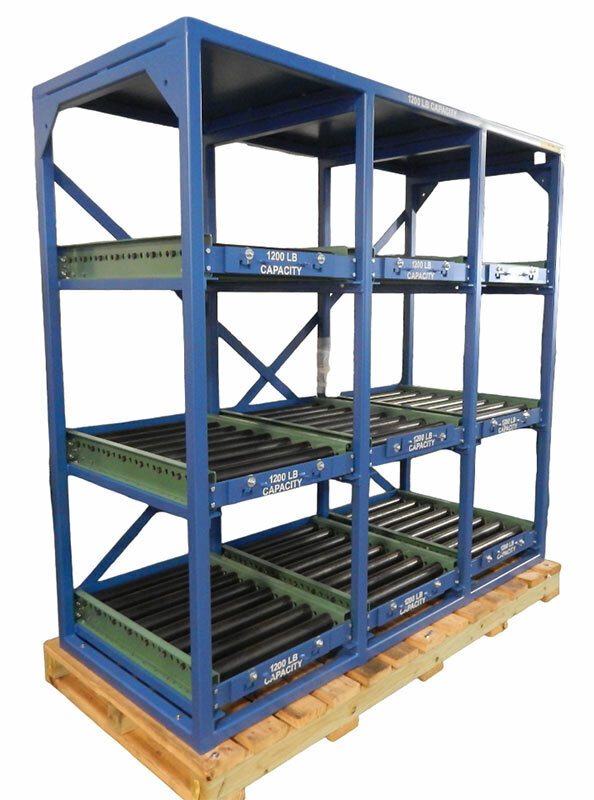

Proper Storage Systems' heavy-duty die shelving is made to customer specifications, so you occupy minimal floor space while providing an “exact fit” storage solution for your parts or tools. Provide a list of your part dimensions and floor space available and Proper Storage Systems will customize a solution that fits your needs.

Die Storage Rack Features

Proper Storage Systems manufactures heavy-duty die storage racks to fit your needs and improve material handling. Product features include welded structural steel carriages, adjustable shelves, and a safety interlock system that allows only one shelf to roll out at a time.

Proper Storage Systems heavy-duty mold storage racks are built to last racks that are manufactured in Seguin, Texas. The racks are constructed with structural carbon steel and ship 100% assembled.

Industries We Serve

Our heavy duty mold storage racks and die shelving systems are fully customized to meet our customer's needs and surpass their exceptations. Our die storage racks serve, but not limited to the following industries.

Our racks are made to customer specification.
Provide a list of your part dimensions and floor space available, and Proper Storage Systems will customize a solution that fits your needs. Our racks maximize available space, improve employee safety and increase productivity.
The racks below are projects we have designed for other customers.

Die Storage Rack Example Projects

Below are some examples of our previous die storage rack projects that were made to meet our customer's specifications.

IM5

IM5 - Conveyor Roller Stamping Die Storage Rack

Mold and Die storage racks with conveyor rollers maximize storage space and provide easy access to dies with a transfer cart. We custom design the rack for your specific dies and include safety stops.
Quote A Similar Project
CR1

CR1 - Conveyor Roller Die Storage Roll Out Rack

Die storage racks with conveyor rollers maximize storage space and provide ergonomic access with an adjustable height transfer cart. All units custom designed to fit your specific die sizes.
Quote A Similar Project
CR2

CR2 - Conveyor Roller Die Storage Roll Out Rack

Each die storage bay has a movable front safety stop. Choice of full width manual style or center bay gravity style.
Quote A Similar Project
CR3

CR3 - Conveyor Roller Die Storage Racks

Conveyor roller racks provide ergonomic access to each individual tool or die being stored.
Quote A Similar Project
CR4

CR4 - Conveyor Roller Injection Mold Storage Roll Out Rack

Die handling safety is enhanced gravity safety stops that provide an automatic stop point at the front of each conveyor roller shelf.
Quote A Similar Project
CR5

CR5 - Conveyor Roller Die Storage Roll Out Rack

Each conveyor roller die storage rack is designed and configured based on your tooling and usability specifications. Racks are painted in the color of your choice.
Quote A Similar Project
CR6

CR6 - Conveyor Roller Die Storage Roll Out Rack

Conveyor roller racks are of welded construction and ship fully assembled.
